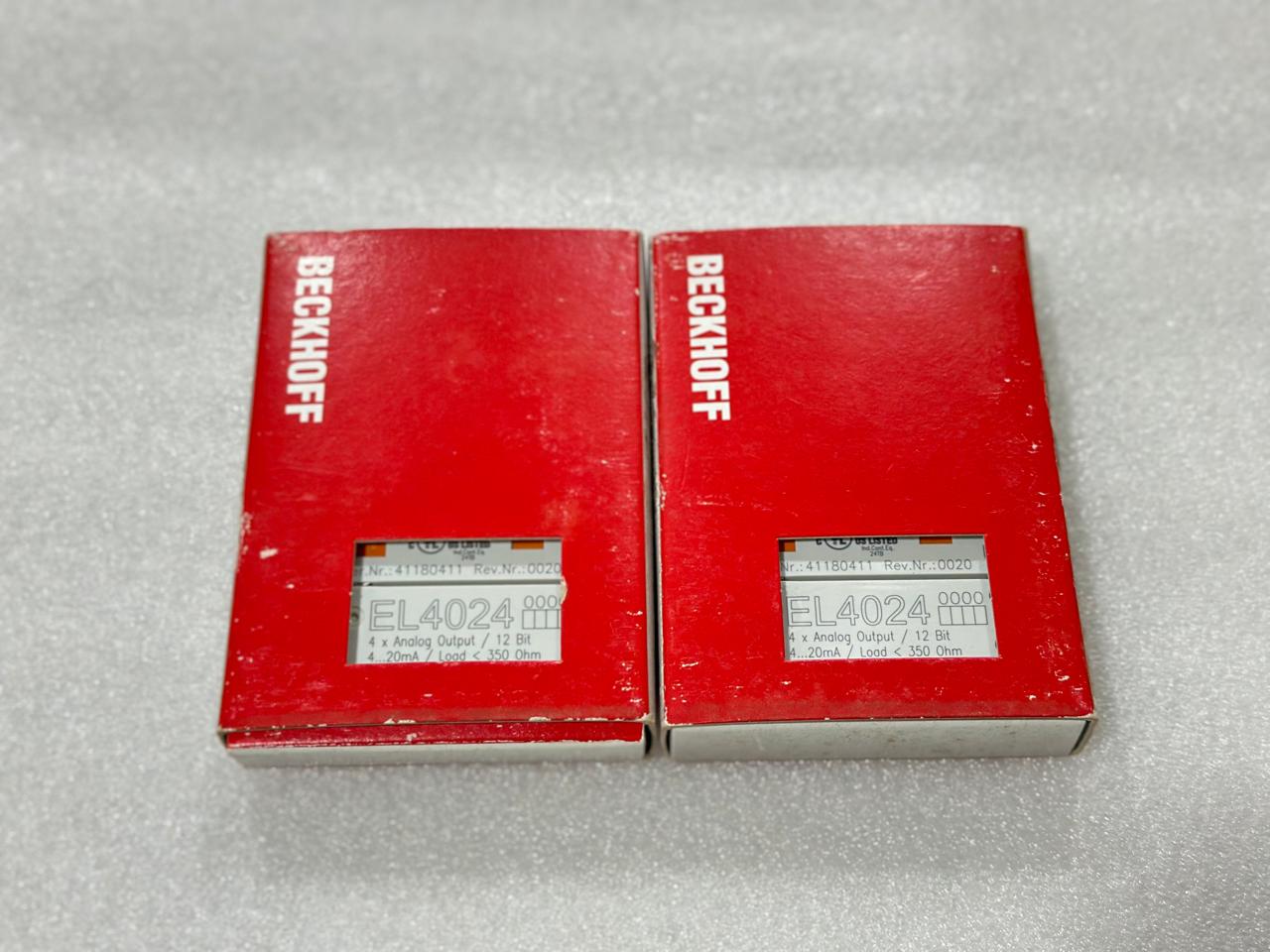

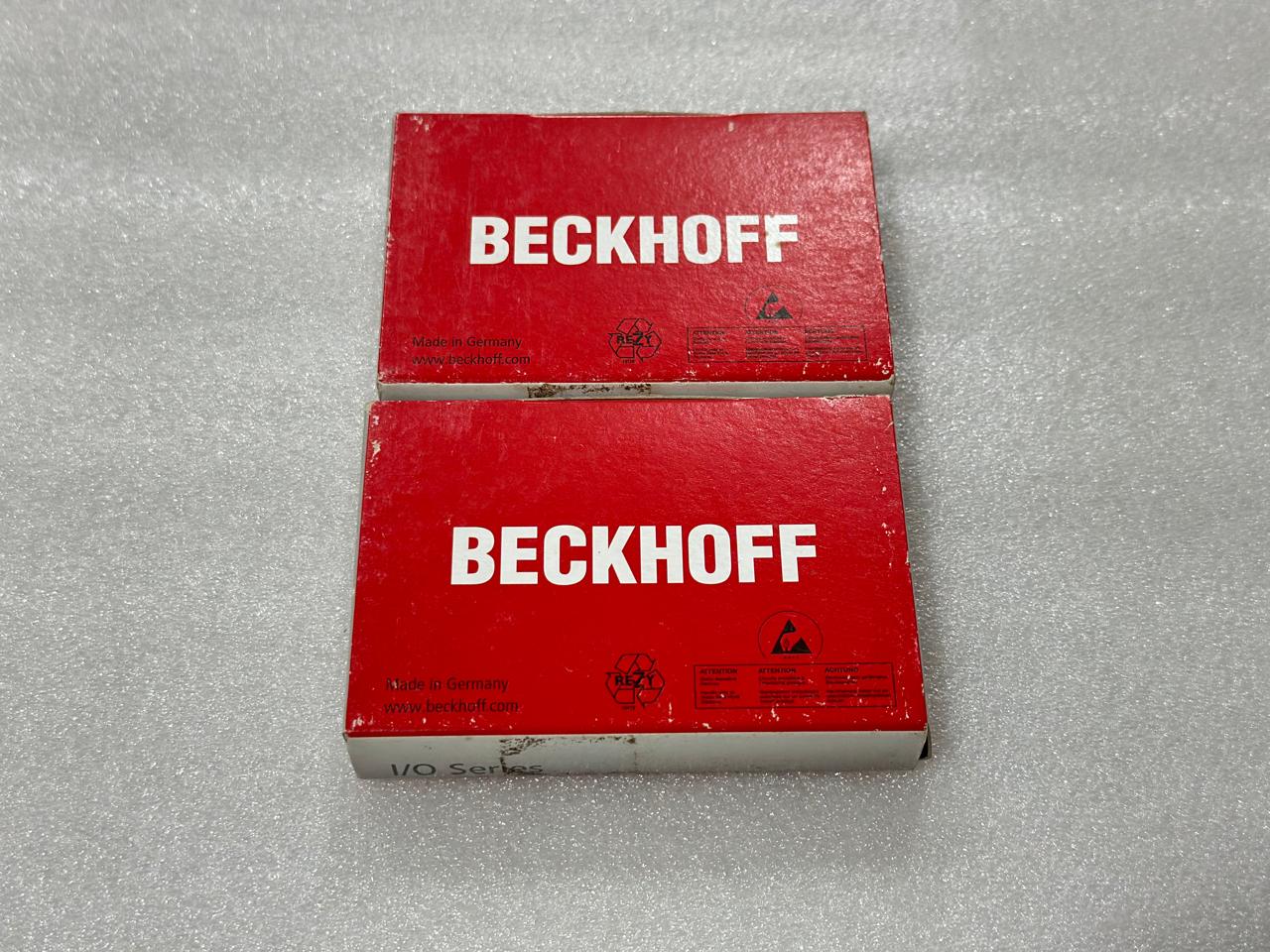

BECKHOFF EL4024 LOT OF 4 PCS

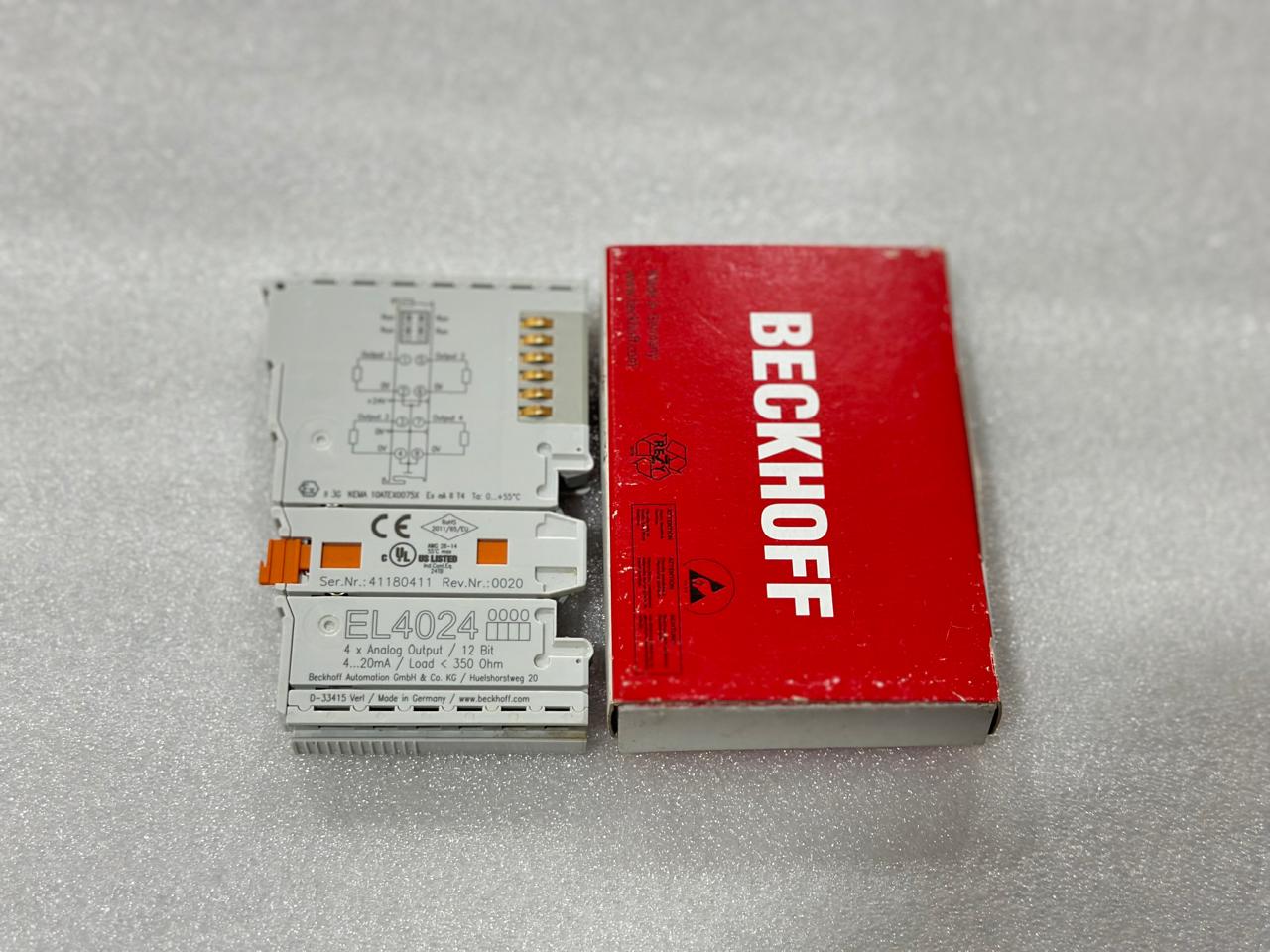

BECKHOFF EL4024

is an EtherCAT terminal with four analog output channels, designed for industrial automation applications. It generates current signals in the range of 4 to 20 mA with a 12-bit resolution. The module is compact, features electrical isolation, and can be mounted on a DIN rail.

Specifications

According to Beckhoff and distributor websites, the technical specifications for the EL4024 are as follows:

• Number of outputs: 4 channels

• Connection technology: 2-wire, single-ended

• Signal current: 4 to 20 mA

• Resolution: 12 bits

• Electrical isolation: 500 V (E-bus/signal voltage)

• Power supply: 24 V DC via power contacts

• Distributed clocks: Yes, with a precision of << 1 µs

• Conversion time: Approximately 250 µs

• Load: < 350 Ω (short-circuit proof)

• Special features: Optional watchdog with user-specific output value and ramp, and user synchronization that can be activated

• Dimensions (W x H x D): 12 mm x 100 mm x 68 mm

• Operating temperature: -25 to +60 °C
