KMC CONTROLS BAC-5051E / BAC5051E (USED)
KMC CONTROLS BAC-5051E / BAC5051E (USED)
$498.99
Out of stock

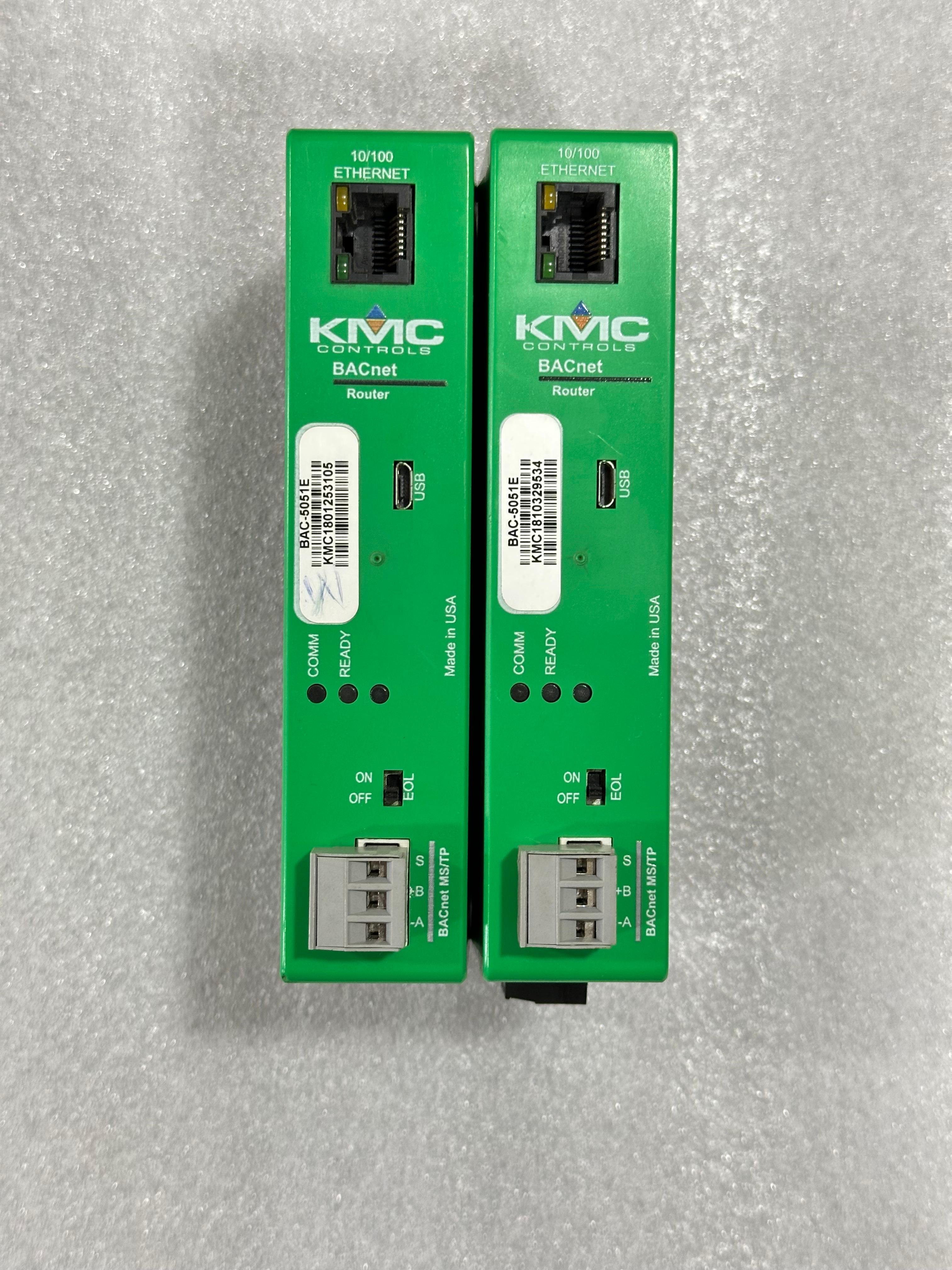

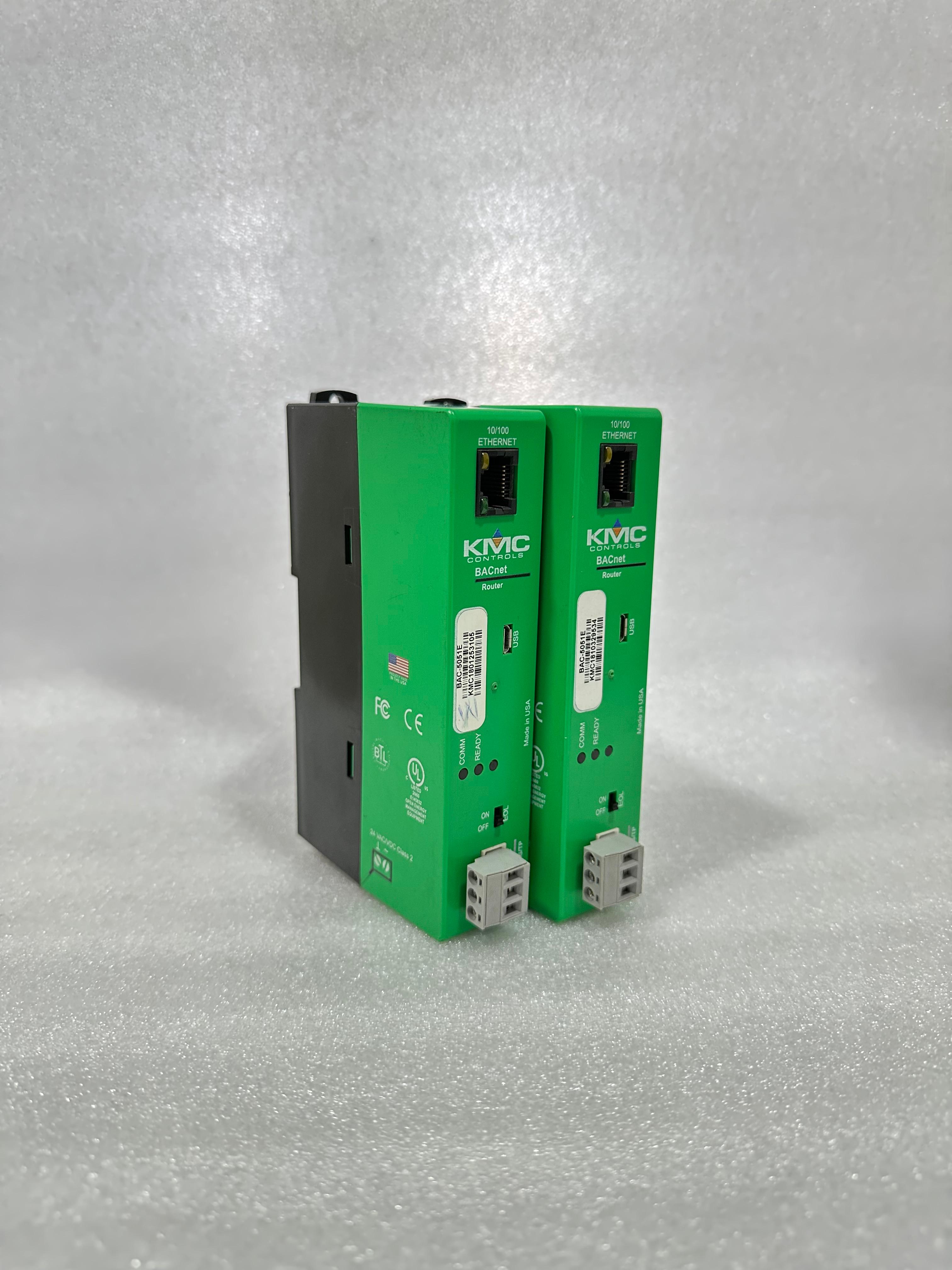

The nearby system information shows that KMC Controls BAC-5051Eit is a multi-port BACnet router , mainly used in commercial building automation systems to achieve communication between different network layers.This device is currently a traditional (older) product from KMC Controls ; the next official replacement model is...BAC-5051AE
🌐 Network routing capabilities
The BAC-5051E is designed to seamlessly connect various BACnet network protocols:
Multi-port routing : Supports routing between BACnet IP, BACnet traditional Ethernet, and a single BACnet MS/TP (serial bus) network.
Cross-segment communication : It can be configured as a BBMD (BACnet Broadcast Management Device), allowing BACnet broadcast traffic to cross different IP subnets.
Foreign Device Registration : Supports Foreign Device Registration, making it easy for BACnet devices on remote networks to register on the local network.
You said: KMC CONTROLS BAC-5051E / BAC5051E
The nearby system information shows that KMC Controls BAC-5051Eit is a multi-port BACnet router , mainly used in commercial building automation systems to achieve communication between different network layers.This device is currently a traditional (older) product from KMC Controls ; the next official replacement model is...BAC-5051AE。 [1, 2]
The following is a guide to the core functions, technical specifications, and common applications of the BAC-5051E router:
🌐 Network routing capabilities
The BAC-5051E is designed to seamlessly connect various BACnet network protocols:
Multi-port routing : Supports routing between BACnet IP, BACnet traditional Ethernet, and a single BACnet MS/TP (serial bus) network.
Cross-segment communication : It can be configured as a BBMD (BACnet Broadcast Management Device), allowing BACnet broadcast traffic to cross different IP subnets.
Foreign Device Registration : Supports Foreign Device Registration, making it easy for BACnet devices on remote networks to register on the local network.
🛠️ Convenient debugging and web page configuration
Built-in HTML5 web server allows technicians to debug directly without software:
Direct browser connection : No special configuration software needs to be installed on the computer. Simply connect the router with an Ethernet cable or the included USB adapter cable, and enter the default IP address (usually 0
192.168.1.252...Dual-purpose : It can be used as a fixed network hardware unit in a central computer room for long-term operation, or it can be packed into the toolkit of a low-voltage engineer as a portable mobile troubleshooting tool
