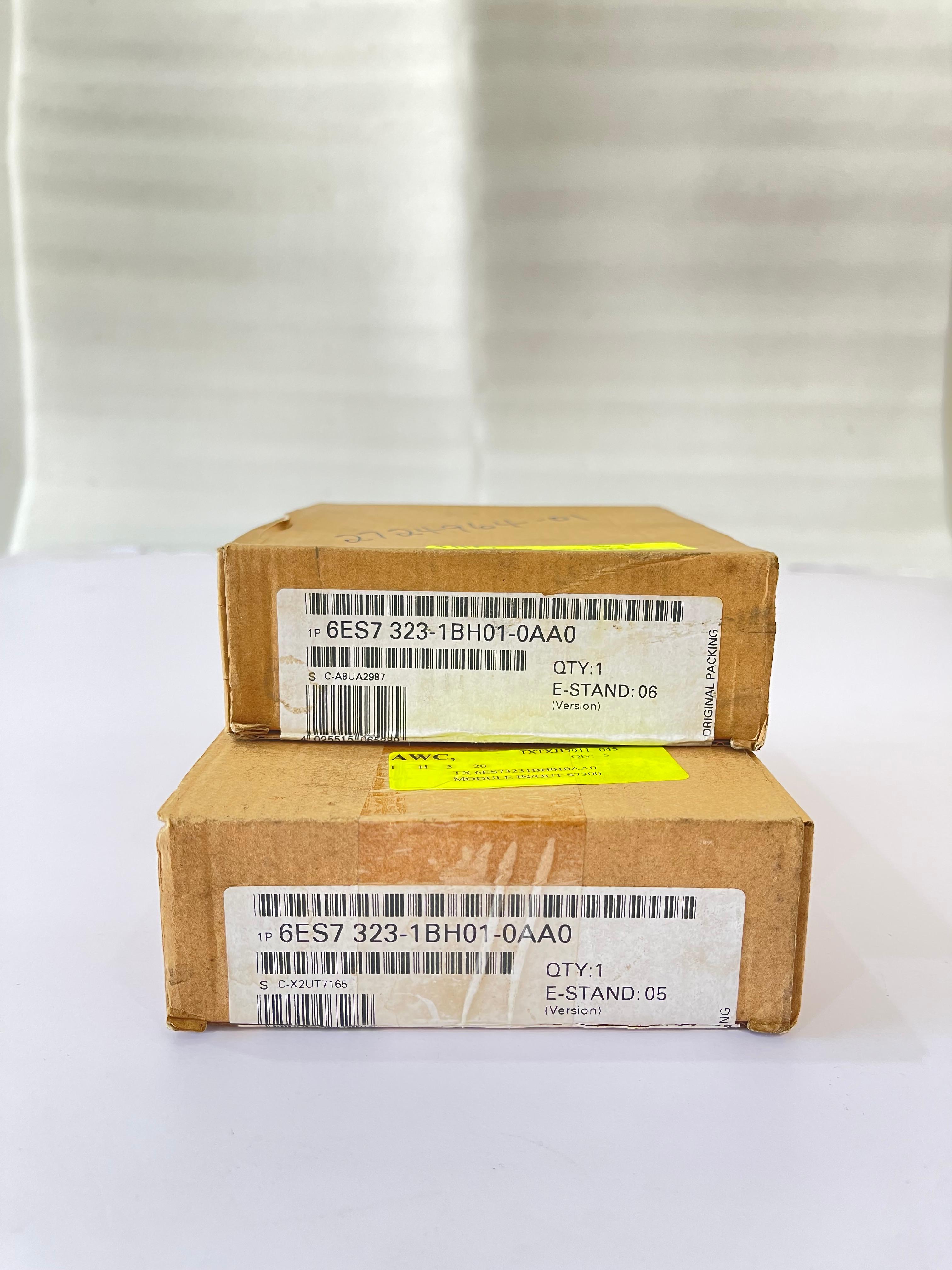

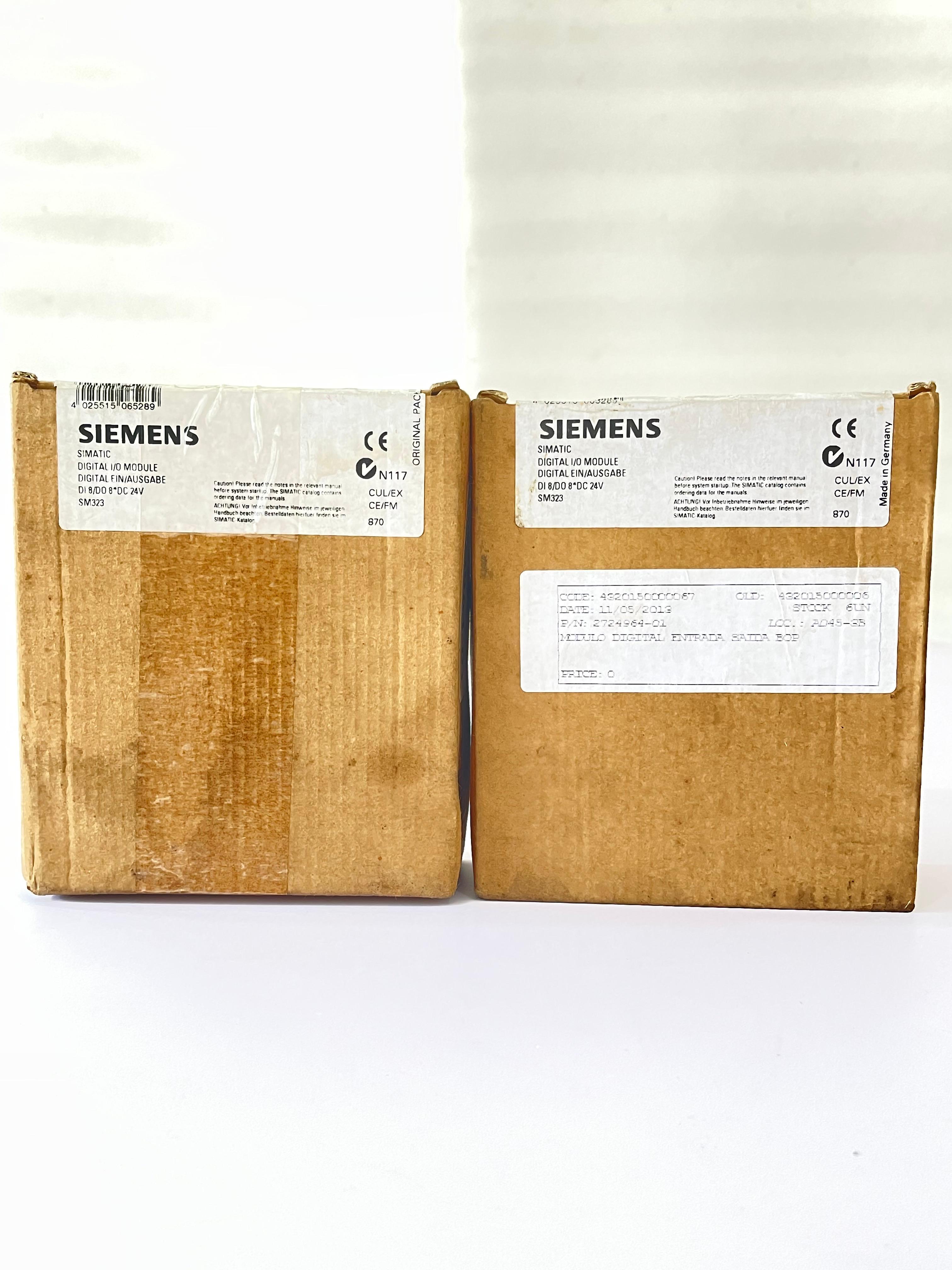

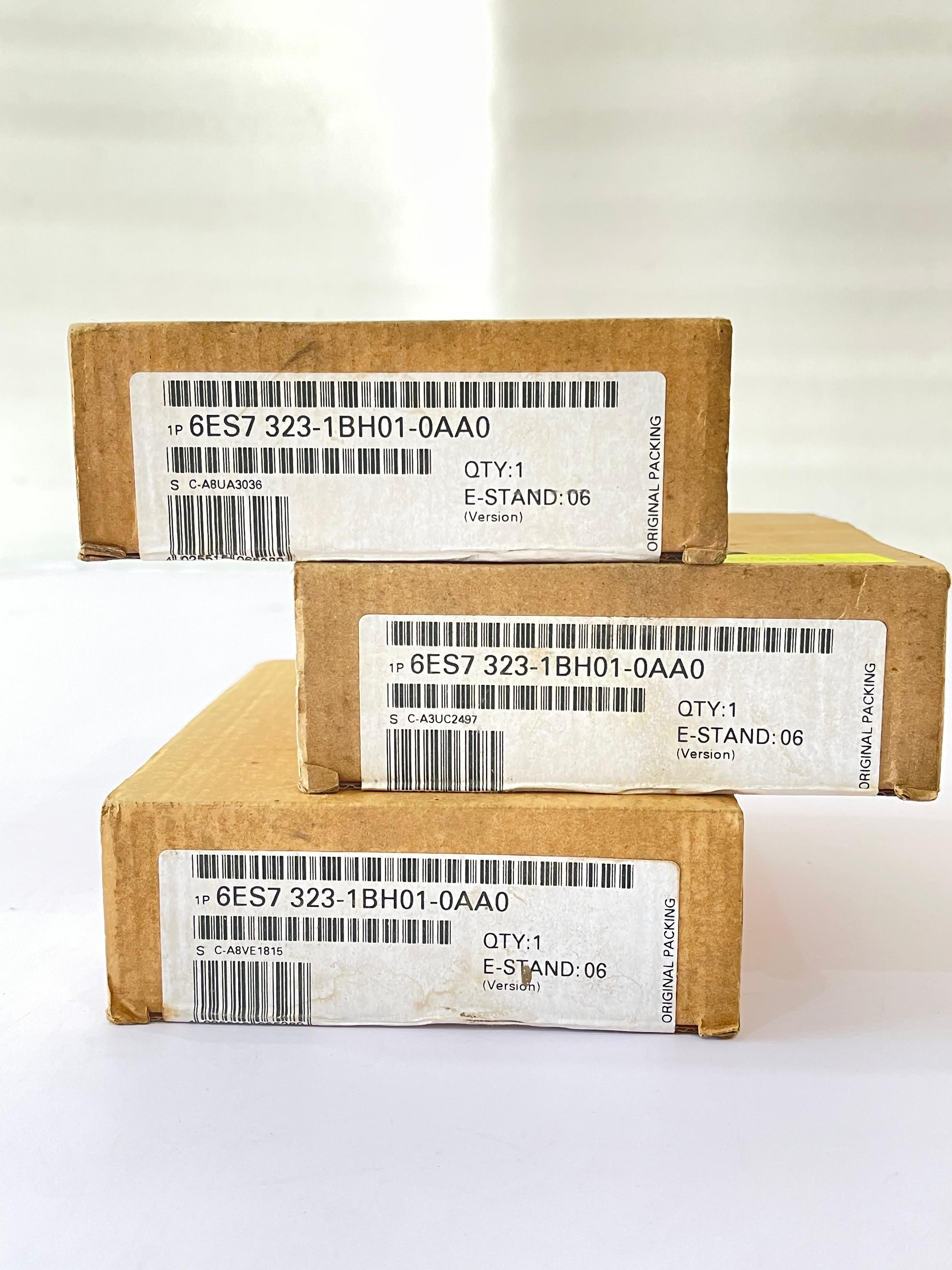

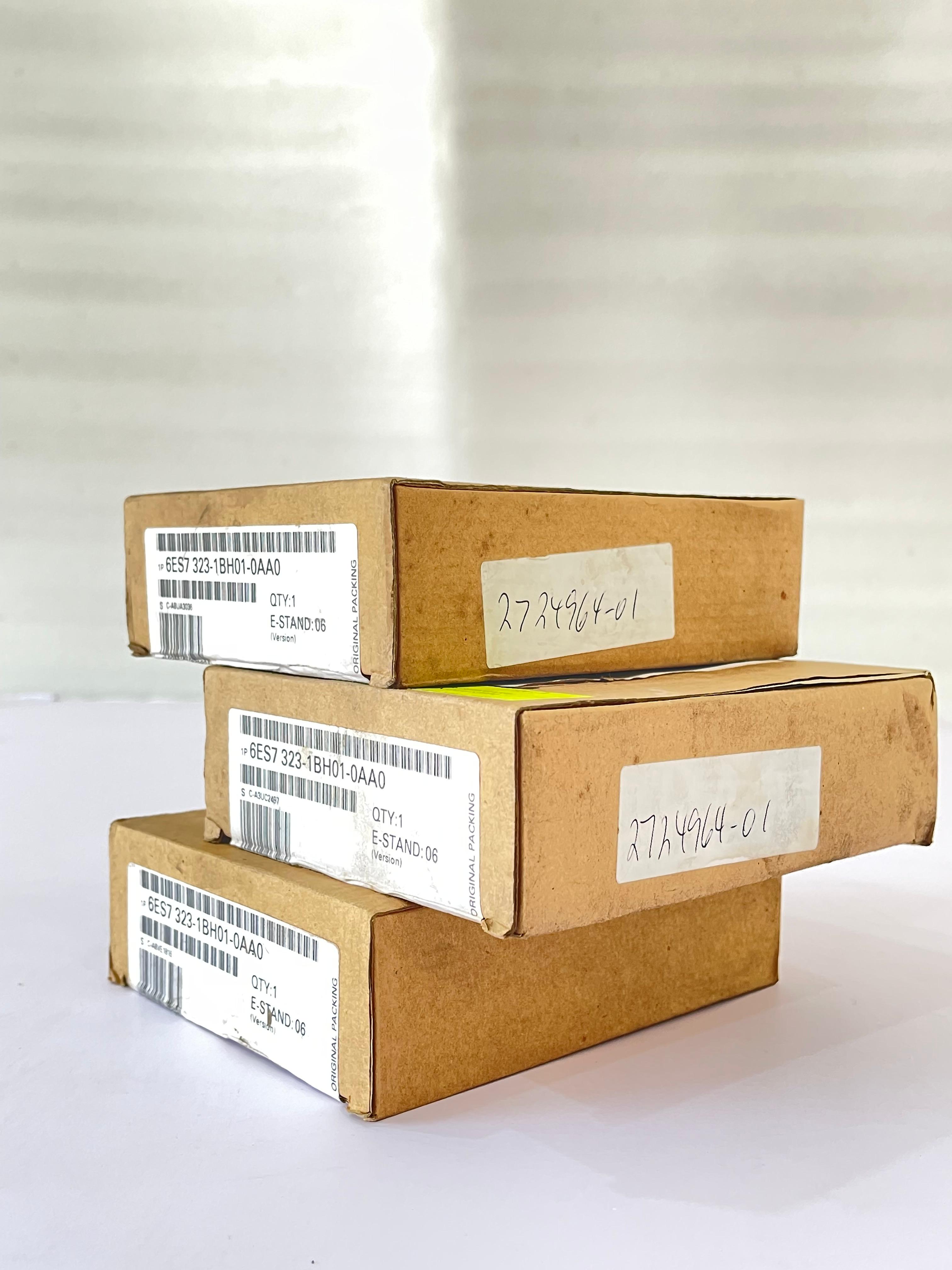

SIEMENS SIMATIC S7-300 6ES7 323-1BH01-0AA0 DIGITAL I/O MODULE
SIEMENS SIMATIC S7-300 6ES7 323-1BH01-0AA0 DIGITAL I/O MODULE
$429.99
Out of stock
The Siemens
6ES7 323-1BH01-0AA0 digital I/O module
is a component of the SIMATIC S7-300 series of programmable logic controllers (PLCs). It is an optically isolated module with eight digital inputs and eight digital outputs.
Technical specifications
According to product data sheets and supplier listings, the key technical details for the 6ES7 323-1BH01-0AA0 are:
PLC series: SIMATIC S7-300
Function: Digital combined input/output module (SM 323)
Isolation: Optically isolated between inputs and outputs
Inputs: 8 digital inputs, isolated in groups of 8
Outputs: 8 digital outputs, isolated in groups of 8
Rated supply voltage: 24 V DC
Permissible voltage range: 20.4 to 28.8 V DC
Output current: 0.5 A per output point, with a total current of 2 A per module
Connection: 1x 20-pin connector
Use cases
The module is designed for converting external process signals for use by the PLC and vice-versa.
Inputs: Suitable for connection to switches and 2-, 3-, or 4-wire proximity switches.
Outputs: Can be used to drive devices such as solenoid valves, DC contactors, and indicator lights.
