SIEMENS SIMATIC S7-300 DIGITAL OUTPUT MODULE 6ES7322-1BH01-0AA0
SIEMENS SIMATIC S7-300 DIGITAL OUTPUT MODULE 6ES7322-1BH01-0AA0
$200.00
Out of stock
The

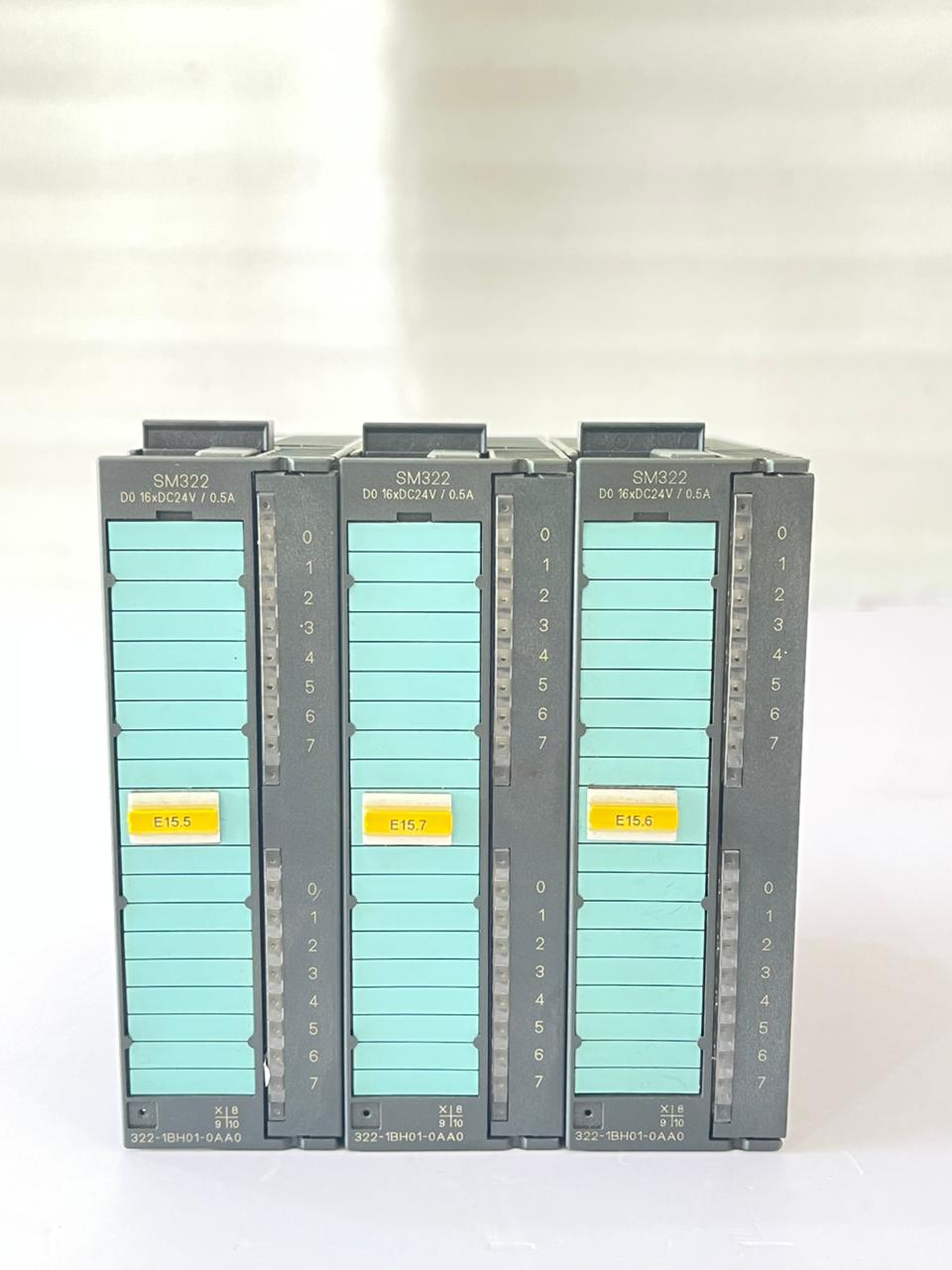

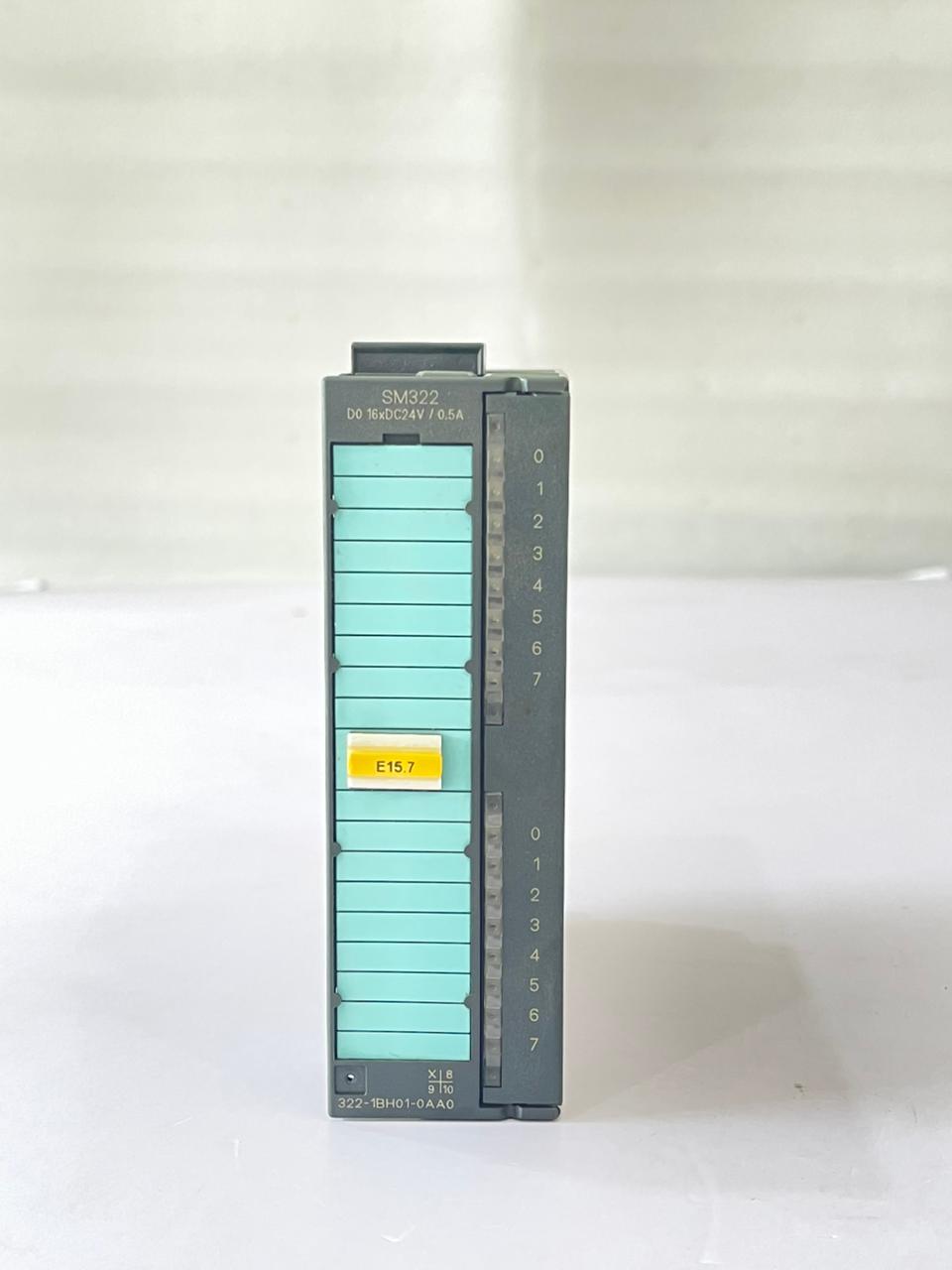

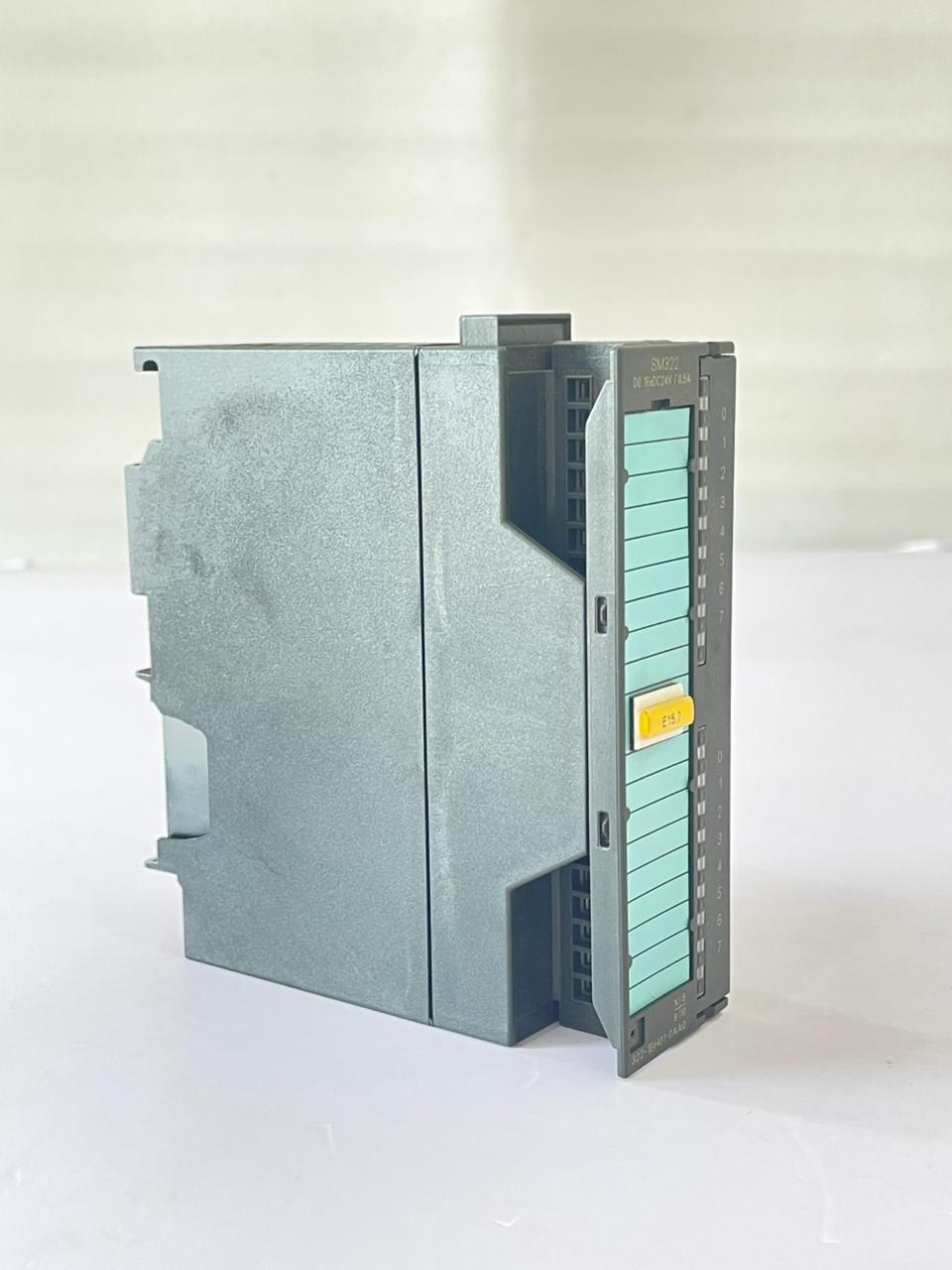

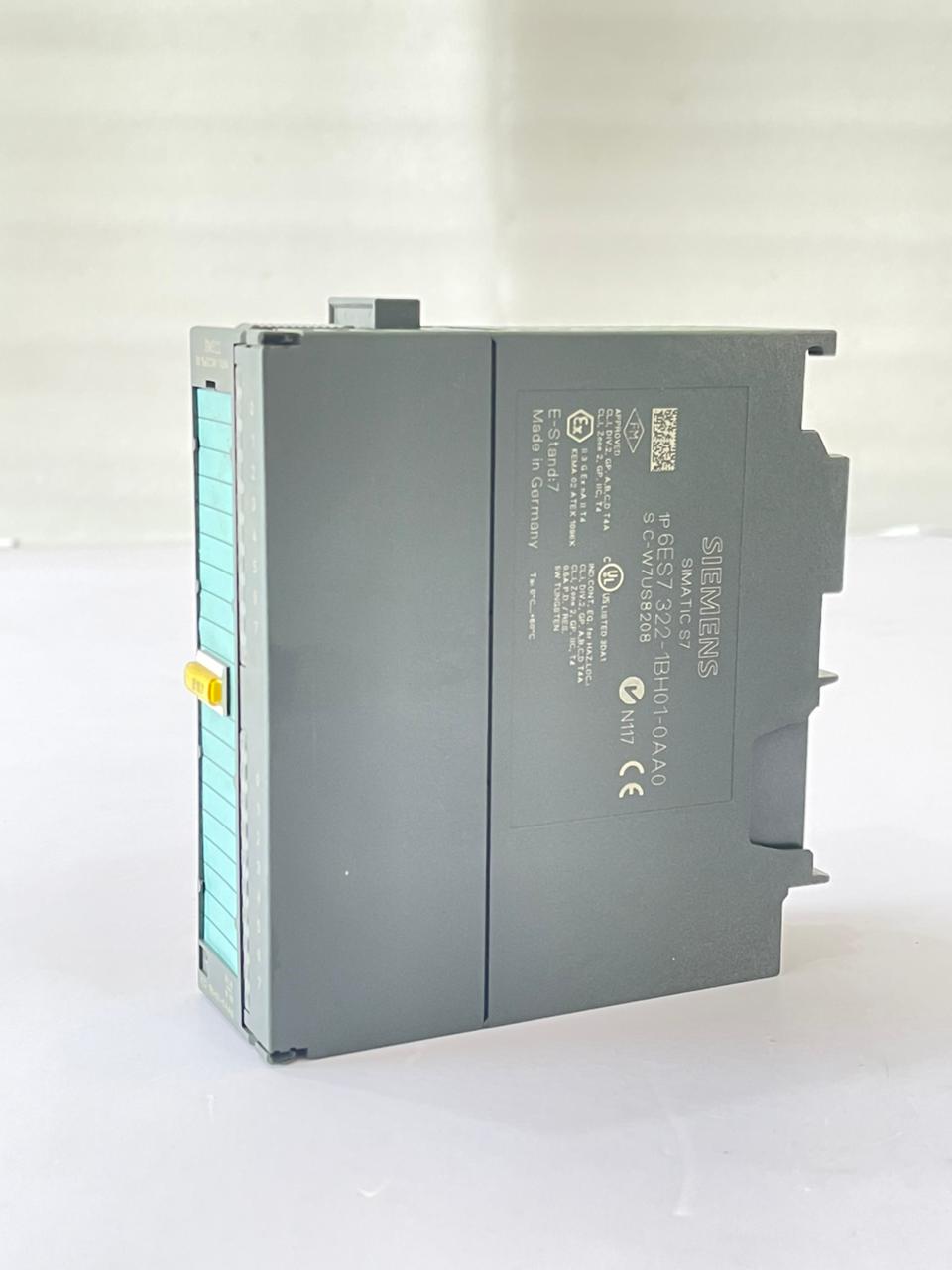

Siemens SIMATIC S7-300 Digital Output Module 6ES7322-1BH01-0AA0
is a digital output module for the SIMATIC S7-300 PLC system. It features 16 digital outputs and provides electrical isolation between channels and the backplane bus.
Product features
According to Siemens product documentation and the Octopart datasheet, the 6ES7322-1BH01-0AA0 module includes the following features:
16 digital outputs: Isolated in groups of eight.
Rated load voltage: 24 VDC.
Output current: 0.5A per channel.
Total current: 4A per group (8A per module).
Connector: 1 x 20-pole.
Applications: Suitable for activating solenoid valves, DC contactors, and indicator lights.
Technical specifications
According to the Octopart datasheet:
Dimensions (W x H x D): 40 x 125 x 117 mm
Weight: Approx. 190 g
Power loss: Typ. 4.9 W
Isolation: Electrically isolated between channels and backplane bus, with channels isolated in groups of 8.
Current consumption from backplane bus: Max. 80 mA.
Current consumption from load voltage (without load): Max. 80 mA.
Ordering information
The module is identified by the part number 6ES7322-1BH01-0AA0. Some suppliers may also offer a "SIPLUS" version for enhanced ambient temperature ranges under a different order number.
